Accessories

A wide range of accessories, such as electric immersion heaters, mounting structures and electrical connections, are available for the proper functioning of heat pumps, as well as for extending their functionality and facilitating installation.

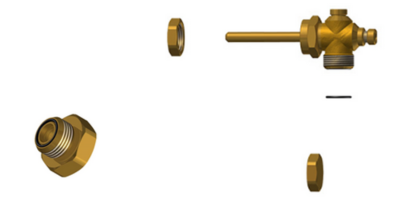

ZPKS DN12

The ZPKS Connection Set consists of 1 pc of sensor housing with KS 1/2″ Air Bleed Valve, 2 pcs of KS 3/4″ Blanking Caps and a ¾″ / 1/2″ Pipe Reducer. It is designed to connect one solar collector unit to the supply and return in a solar heat collector system.
Part no. HSA123402A

ZPKS DN16

The ZPKS Connection Set consists of 1 pc of sensor housing with KS 3/4″ Air Bleed Valve and 2 pcs of KS 3/4″ Blanking Caps. It is designed to connect one solar collector unit to the supply and return in a solar heat collector system.
Part no. HSA123401A

KS Blanking Cap, 3/4″

The Blanking Cap is used to blind the threaded connections of the collectors. It is made of brass.
Part no. 43.01.00

KS Sensor Housing, 3/4″

The Sensor Housing provides a cover for the temperature sensor in flat plate collectors. It is used when integrated into a non-flow connection pipe of a flat plate collector.
Part no. 44.01.00

KS Sensor Housing with Air Bleed Valve

The Housing provides a cover for the temperature sensor when the sensor is installed in the flat plate collector in a flow connector. The Housing is made of copper tube with a brass head. It has a 3/4″ female 30 mm hex nut, a manual air bleed valve and a Viton O-ring.
DN12: Part no. HSA340012M6
DN16: Part no. HSA340016M6

KS O-ring (10 pcs)

It is made of VITON® fluorocarbon rubber. It maintains its properties over a wide operating temperature range from -40 to +220°C, and it is resistant to substances such as oils, greases and glycols.
KS ½”: Part no. 73.00.16
KS ¾”: Part no. 73.00.17

KS Union, 3/4″
This union is used to connect solar collector panels to make fields. A maximum of 8 solar collector panels can be combined in one such grouping.
  • Up to 8 collectors can be connected
  • Easy to install
  • Reliable design
Get to know the product

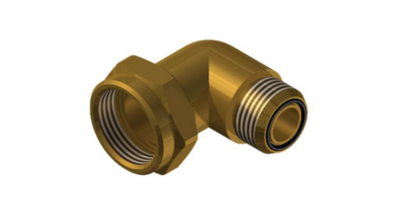

KS Elbow Union DN12

The KS Elbow Union DN12 consists of a 3/4″ female hexagonal brass nut and a 1/2″ male thread elbow piece. The 3/4″ nut has a wide face for a gasket.
Part no. HSA349012

KS Elbow Union DN16

The KS Elbow Union DN12 consists of a 3/4″ female hexagonal brass nut and a 3/4″ male thread elbow piece. The 3/4″ nut has a wide face for a gasket.
Part no. HSA349016

Temperature sensor with 3 m Teflon cable

This sensor is designed for solar thermal collectors and is resistant to very high temperatures and UV radiation thanks to its Teflon insulation.
Part. No. HSA00041

Temperature sensor with 3 m cable

The PVC-insulated temperature sensor is designed for use in solar thermal installations, in addition to direct installation in solar thermal collectors. The operating temperature limit is 110°C.
Part. No. 74.30.00

TERMSOL EKO Solar Fluid
TERMSOL EKO Solar Fluid is an aqueous solution of non-toxic propylene glycol. It is a non-freezing heat transfer fluid in a solar heat collector system.
  • Non-freezing heat transfer fluid
  • Available weights: 5, 20, 30 kg
  • Excellent anti-corrosion effect
Get to know the product
Hand pump

The hand pump is used to fill the solar heat collector system with the heat transfer fluid. It is a piston hand pump with a 3 dm³ tank.
Part. No. 73.02.00

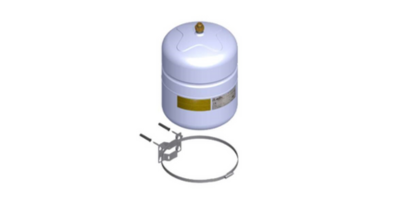

ZNP Kit 18 DS DN 12

Diaphragm vessel kit for glycol, 18 litre, with ½” connection stub with a face for a flat gasket. The kit comes with a wall mounting bracket.
Part no. HSN180012

ZNP Kit 18 DS DN 16

Diaphragm vessel kit for glycol, 18 litre, with 3/4″ connection stub with a face for a flat gasket. The kit comes with a wall mounting bracket.
Part no. HSN180034

ZNP Kit 24 DS DN 16

Diaphragm vessel kit for glycol, 24 litre, with 3/4″ connection stub with a face for a flat gasket. The kit comes with a wall mounting bracket.
Part no. HSN240034
