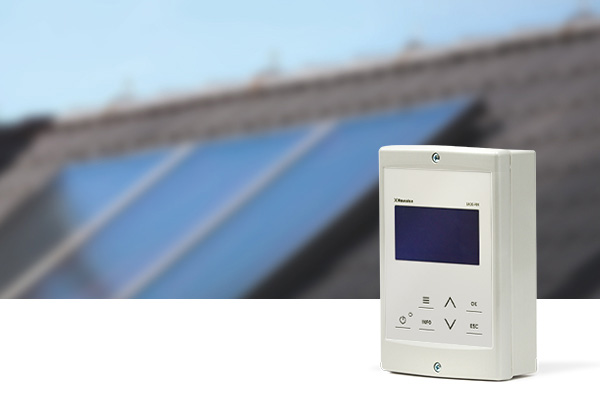

GH26-P09 controller (with temperature sensors)

The GH26-P09 is among the most advanced controllers on the market. Designed to handle any type of solar thermal installation thanks to its extensive range of measurements and functions, together with the option of remote monitoring.

What does the GH26 controller offer?

The GH26 controller is an advanced and sophisticated solution designed to operate virtually any type of solar thermal system. It can be either a large solar thermal system or a small one designed not only to heat DHW, but also to support central heating or to heat swimming pool water. In addition, cooperation with an external heat source, such as a heating boiler, boiler or electric heater, is possible. Another important extension of the controller’s functionality is the possibility of connecting a pressure sensor in the solar thermal system.

Solar plant with EKONTROL extended remote monitoring

The wide range of functions that the GH26 controller has can be operated remotely using the EKONTROL system. Above all, convenient remote operation of the controller settings and viewing of the operating states of the solar thermal system are possible from the mobile app. Using a web browser, an animated diagram of the solar plant in operation and extensive statistics in the form of graphs and tables are additionally obtained.

For the highest demands – used in all climate zones

Due to its capabilities, the GH26 controller is particularly suitable for the high operating requirements of both the solar thermal system itself and its owner and operator. The controller is applicable in many countries with different climates and technical requirements – to this end, one of 22 languages can be selected for operation.

Learn more

Overview of the GH26 controller functions (P09 version)
The GH26 controller has one of the widest ranges of functions on the market and the ability to work with almost any type of solar thermal installation. Among other things, this allows solar central heating support to be realised in cooperation with the boiler.
Rozwiń odpowiedź
  • intuitive and comfortable operation thanks to large LCD display
  • selectable circulating pump type: fixed speed and electronic
  • possibility to connect 6 NTC10k-type temperature sensors
  • possibility to connect 3 circulation pumps and/or control valves
  • 2 electronic pumps can be controlled (PWM)
  • possibility of connecting 2 electronic flowmeters (G-916)
  • possibility to connect a pressure switch for pressure control in the solar thermal installation
  • can be combined with UPS device (solar pump backup)
  • handling min. 19 diagrams of solar thermal systems, including heating support and pool water heating
  • reducing the operation of the primary heat source, e.g., the boiler
  • selection of the operating priority of the solar thermal system (domestic water, heating support, swimming pool water)
  • time programmes for the operation of circulation pumps, e.g., the hot water circulation pump
  • extended timing function for the domestic hot water circulation pump
  • hygiene function (periodic antibacterial heating)
  • protection of solar thermal collectors against overheating
  • history of solar thermal collector overheating conditions (> 135°C)
  • protection of the domestic hot water storage tank against overheating (heat transfer to the fixed boiler)
  • holiday function to protect the system from overheating during extended periods of no heat extraction

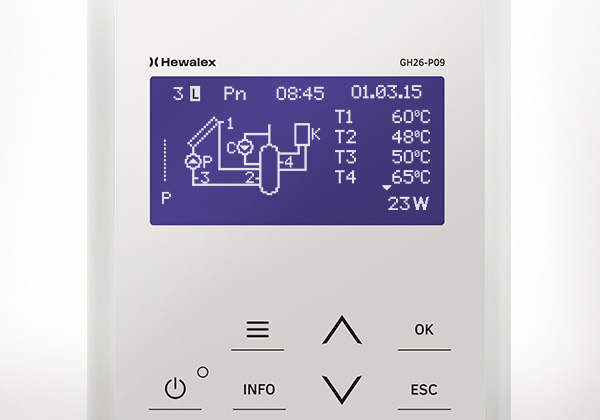

  • graphical display of current temperatures and system operating states
  • graphical display of heat gains over time (daily, weekly, monthly and multiannual counters)
Technical Specification

Cat. No.:

74.02.02

Number of temperature sensors:

max. 6

Number of circulating pumps supported:

max. 3

Control method:

Driver panel

Assembly:

Wall mounting

GH26-P09

Cat. No.:

74.02.02

Number of temperature sensors:

max. 6

Number of circulating pumps supported:

max. 3

Control method:

Driver panel

Assembly:

Wall mounting
